Processing 1,000 oil drill bits per month, the standard tooth hole rate is 99.99%, the effect of tooth fixing is significantly improved, and the cost of tooth matching is greatly reduced.

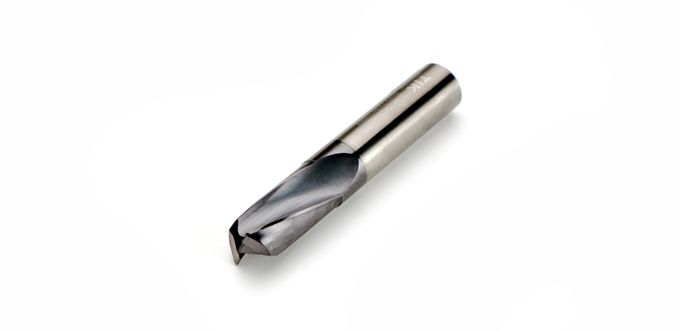

Tool model :long force drill QZL φ14.288

Processed material : SN2025; HRC38-42

Processing conditions : 1200(r/min); 70(mm/min); 12mm

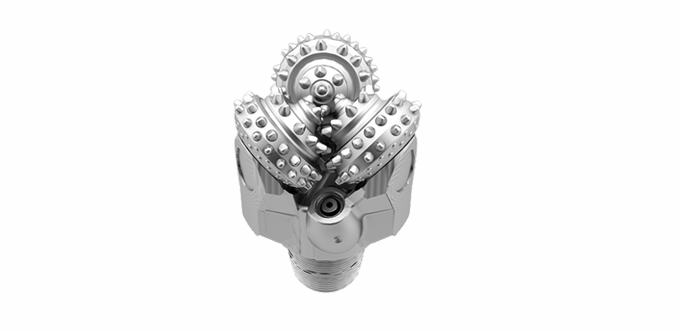

Processing object : gear hole processing of oil roller cone bit

Cutting parameters : 35-50 m/min F: 40-80 mm/min

Detailed description

Tool model		Long drill QZL φ 14.288	Workpiece Drawings / Special Requirements
processed material	name	gear
	material	SN2025
	hardness	HRC38-42
Processing conditions	Spindle speed	1200 ( r/min )
	Feed rate	70 ( mm/min )
	Processing depth	12mm
	cooling method	Emulsion	result	1. Processing 1,000 oil-use drill bits per month, the standard tooth hole rate is 99.99 % , the effect of tooth fixing is significantly improved, and the cost of tooth matching is greatly reduced.
	Test machine	Vertical Machining Center	result

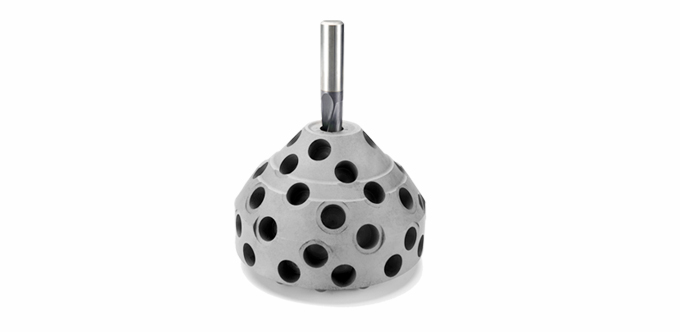

Processing object: gear hole processing of oil roller cone bit

Cutting parameters: V: 35-50 m/min F: 40-80 mm/min

Processing equipment: Taiwan Qiaofu CNC vertical machining center; spindle runout <0.01mm, BT50 hydraulic tool holder

Gear hole quality: roundness ≤ 0.005mm, taper ≤ 0.005mm; surface roughness Ra ≤ 1.6um; aperture accuracy IT7 standard gear hole rate ≥ 99.97%

Workpiece material: 15MnNi4Mo, hardness HRC38-42

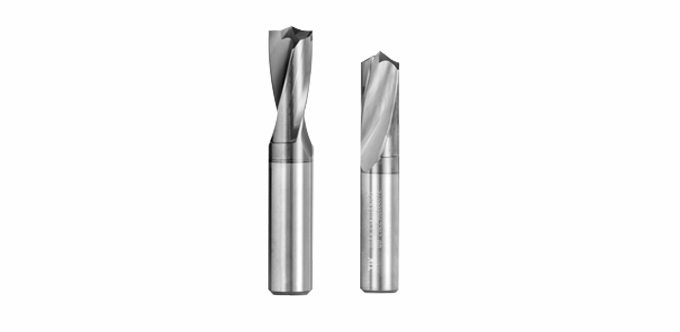

Tool specifications: KZ, KP series long force drill: D4, 6.35, 11.112,

other applications: Hua Titanium K series long force drill can be widely used in alloy steel,12.7, 14.288, 15.875, 19.05, 22.225, high carbon steel, ductile iron, Hole processing of gray cast iron and other materials 25.4
